Generate a rose-like string art pattern

Source: R/strose.R
strose.Rd

strose() generates a rose-like string art figure based on a polar curve of the form r(theta) = amplitude * (1 + cos(petals * theta)) / 2.

Usage

strose(
  n = 240,
  k = 17,
  col = "deeppink4",
  lwd = 0.7,
  plot = TRUE,
  show_points = FALSE,
  show_labels = FALSE,
  verbose = FALSE,
  petals = 6,
  amplitude = 1,
  rotate = 0,
  show_strings = TRUE,
  template = FALSE,
  draw_curve = TRUE,
  border_col = "grey50",
  border_lwd = 1,
  point_col = "black",
  point_cex = 0.5,
  point_pch = 19,
  point_bg = "white",
  label_cex = 0.6,
  label_col = "black",
  bg = "white",
  main = NULL
)

Arguments

n

Integer. Number of pegs sampled along the curve. Must be at least 3.

k

Integer. Additive modular step used in the connection rule. Must satisfy 1 <= k <= n - 1.

col

String color passed to graphics::segments().

lwd

Positive number. Line width used to draw the strings.

plot

Logical. If TRUE, draws the figure.

show_points

Logical. If TRUE, draws the pegs.

show_labels

Logical. If TRUE, draws peg labels.

verbose

Logical. If TRUE, prints a short audit to the console.

petals

Integer. Number of petals in the rose-like curve.

amplitude

Positive number. Maximum radial amplitude.

rotate

Numeric. Rotation angle in radians.

show_strings

Logical. If TRUE, draws the string connections.

template

Logical. If TRUE, draws only the peg template, without string connections. This is equivalent to setting show_strings = FALSE and show_points = TRUE.

draw_curve

Logical. If TRUE, draws the underlying rose-like curve.

border_col

Curve color.

border_lwd

Positive number. Curve line width.

point_col

Peg color.

point_cex

Positive number. Peg size.

point_pch

Plotting symbol used for pegs.

point_bg

Peg background color when applicable.

label_cex

Positive number. Label size.

label_col

Label color.

bg

Plot background color.

main

Optional plot title. If NULL, no title is displayed.

Value

Invisibly returns a list of class stringart_result.

Details

The pegs are sampled from the polar curve r(theta) = amplitude * (1 + cos(petals * theta)) / 2, which produces a rose-like pattern with petals visible petals.

The connections follow the additive modular rule to = ((from + k - 1) %% n) + 1.

Examples

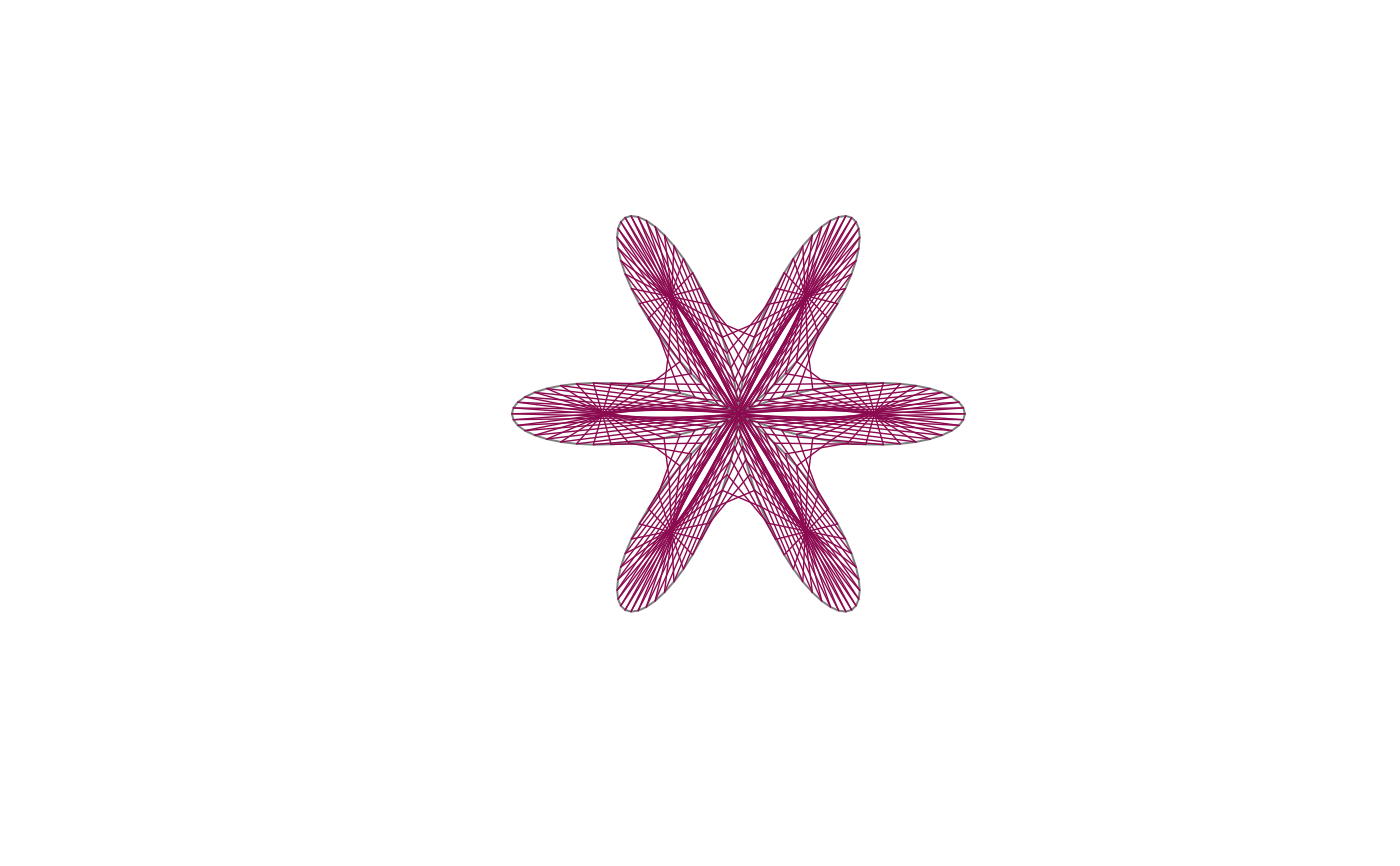

strose()

strose(petals = 6)

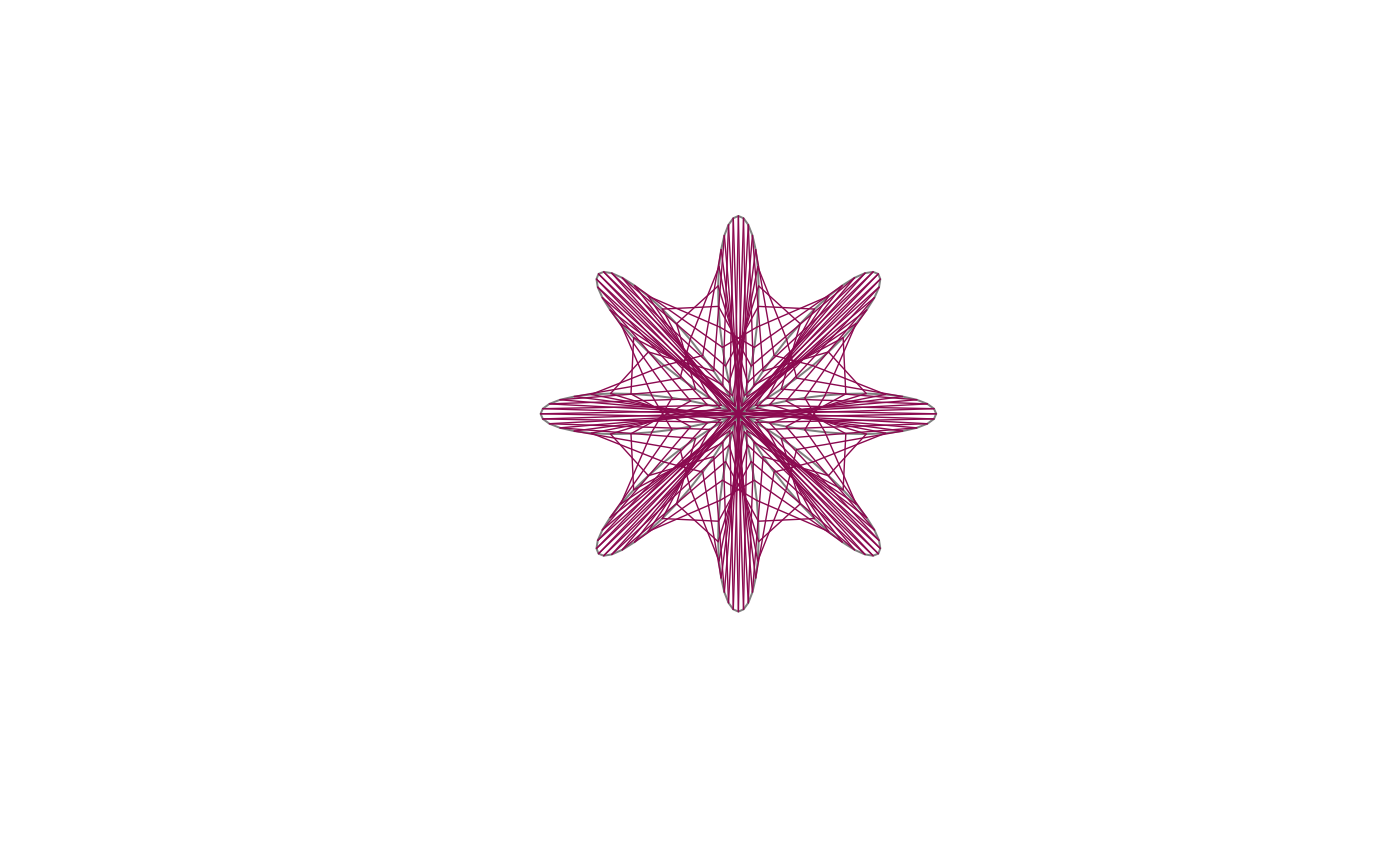

strose(petals = 8)

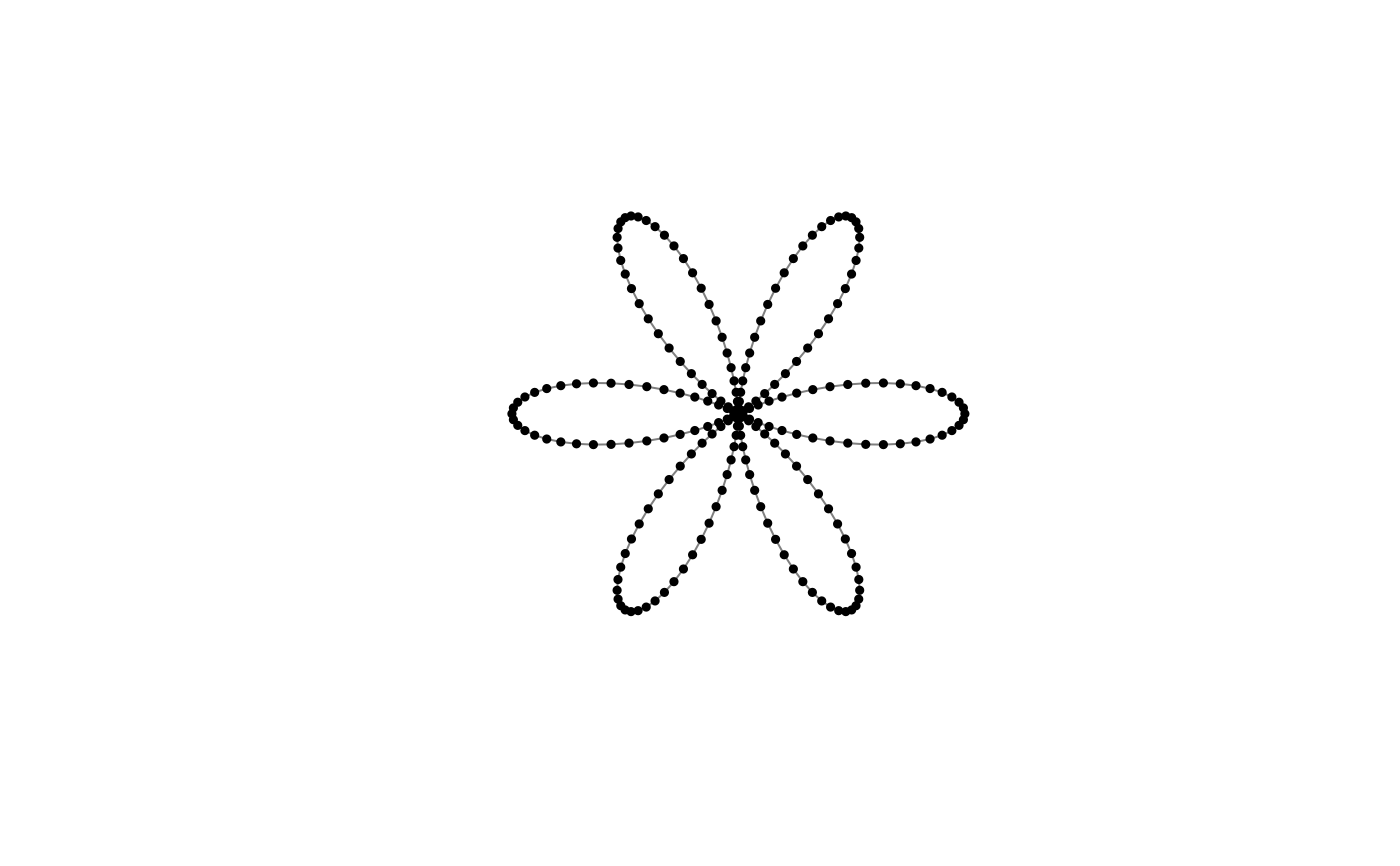

strose(template = TRUE)
