Generate string art on a regular polygon

Source: R/stpolygon.R
stpolygon.Rd

stpolygon() generates a string art figure on the boundary of a regular polygon. Pegs are distributed uniformly along the polygon perimeter and connected using an additive modular rule.

Usage

stpolygon(
  n = 60,
  k = 7,
  col = "blue",
  lwd = 1,
  plot = TRUE,
  show_points = TRUE,
  show_labels = FALSE,
  verbose = FALSE,
  sides = 5,
  radius = 1,
  rotate = pi/2,
  show_strings = TRUE,
  template = FALSE,
  point_col = "black",
  point_cex = 0.8,
  point_pch = 19,
  point_bg = "white",
  label_cex = 0.7,
  label_col = "black",
  border_col = "grey50",
  border_lwd = 1,
  bg = "white",
  main = NULL
)

Arguments

n

Integer. Number of pegs placed along the polygon boundary. Must be at least 3 and at least sides.

k

Integer. Additive modular step used in the connection rule. Must satisfy 1 <= k <= n - 1.

col

String color passed to graphics::segments().

lwd

Positive number. Line width used to draw the strings.

plot

Logical. If TRUE, draws the figure.

show_points

Logical. If TRUE, draws the pegs.

show_labels

Logical. If TRUE, draws peg labels.

verbose

Logical. If TRUE, prints a short audit to the console.

sides

Integer. Number of polygon sides. Must be at least 3.

radius

Positive number. Circumradius of the polygon.

rotate

Numeric. Rotation angle in radians applied to the polygon.

show_strings

Logical. If TRUE, draws the string connections.

template

Logical. If TRUE, draws only the peg template, without string connections. This is equivalent to setting show_strings = FALSE and show_points = TRUE.

point_col

Peg color.

point_cex

Positive number. Peg size.

point_pch

Plotting symbol used for pegs.

point_bg

Peg background color when applicable.

label_cex

Positive number. Label size.

label_col

Label color.

border_col

Polygon border color.

border_lwd

Positive number. Polygon border line width.

bg

Plot background color.

main

Optional plot title. If NULL, no title is displayed.

Value

Invisibly returns a list of class stringart_result with:

pegs

A data.frame with columns index, x, y, side, and local_index.

connections

A data.frame with columns connection_index, from, to, x_from, y_from, x_to, y_to, and length.

total_length

Total string length.

audit

A character vector with audit information.

meta

A list with construction metadata.

Details

The polygon is inscribed in a circle of radius radius. Pegs are distributed uniformly along the full boundary, not only at the vertices. The additive modular connection rule is:

to = ((from + k - 1) %% n) + 1.

This construction supports the exploration of regular polygons, central and interior angles, symmetry, congruence, divisibility, and modular arithmetic.

Examples

stpolygon()

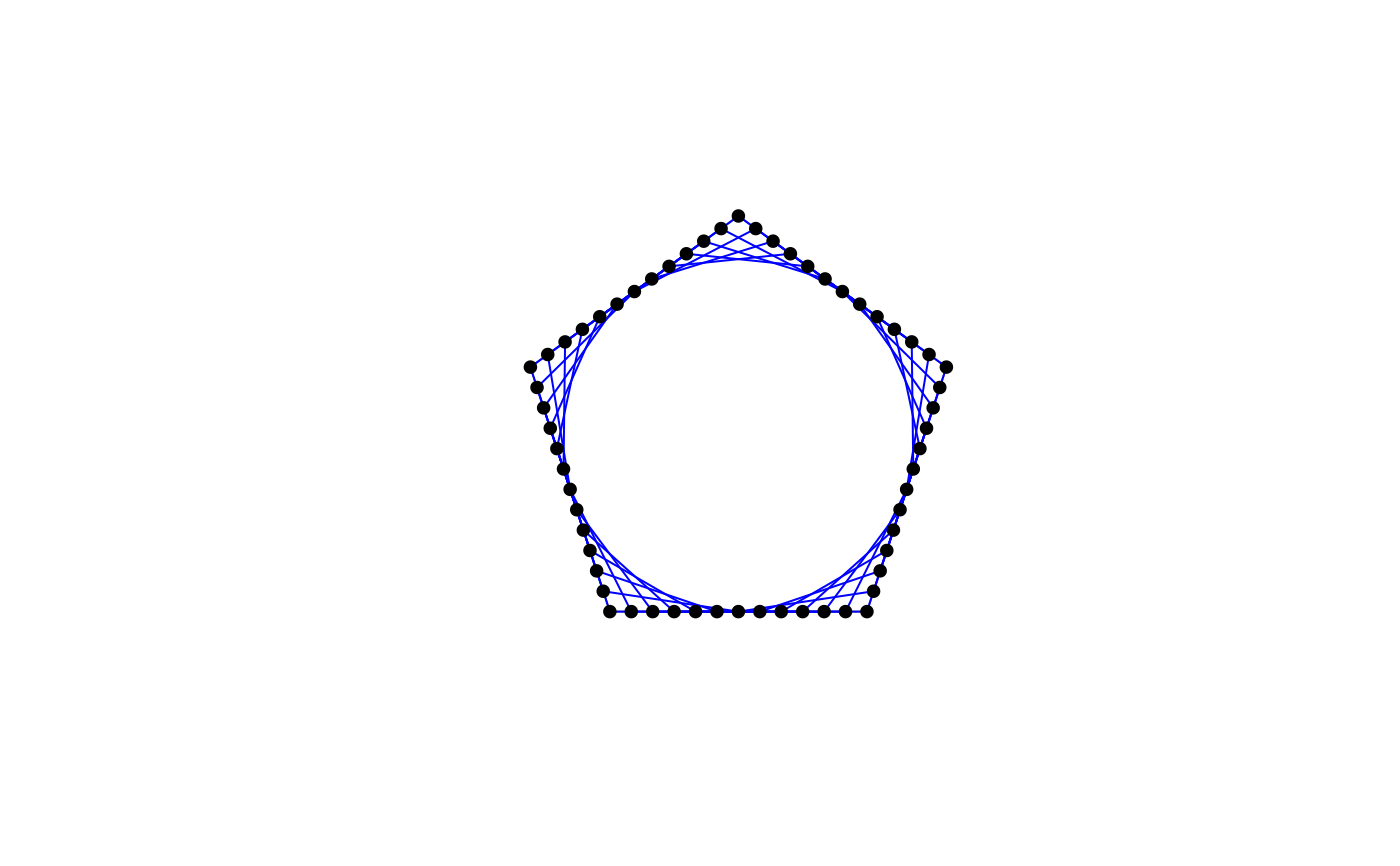

stpolygon(sides = 5)

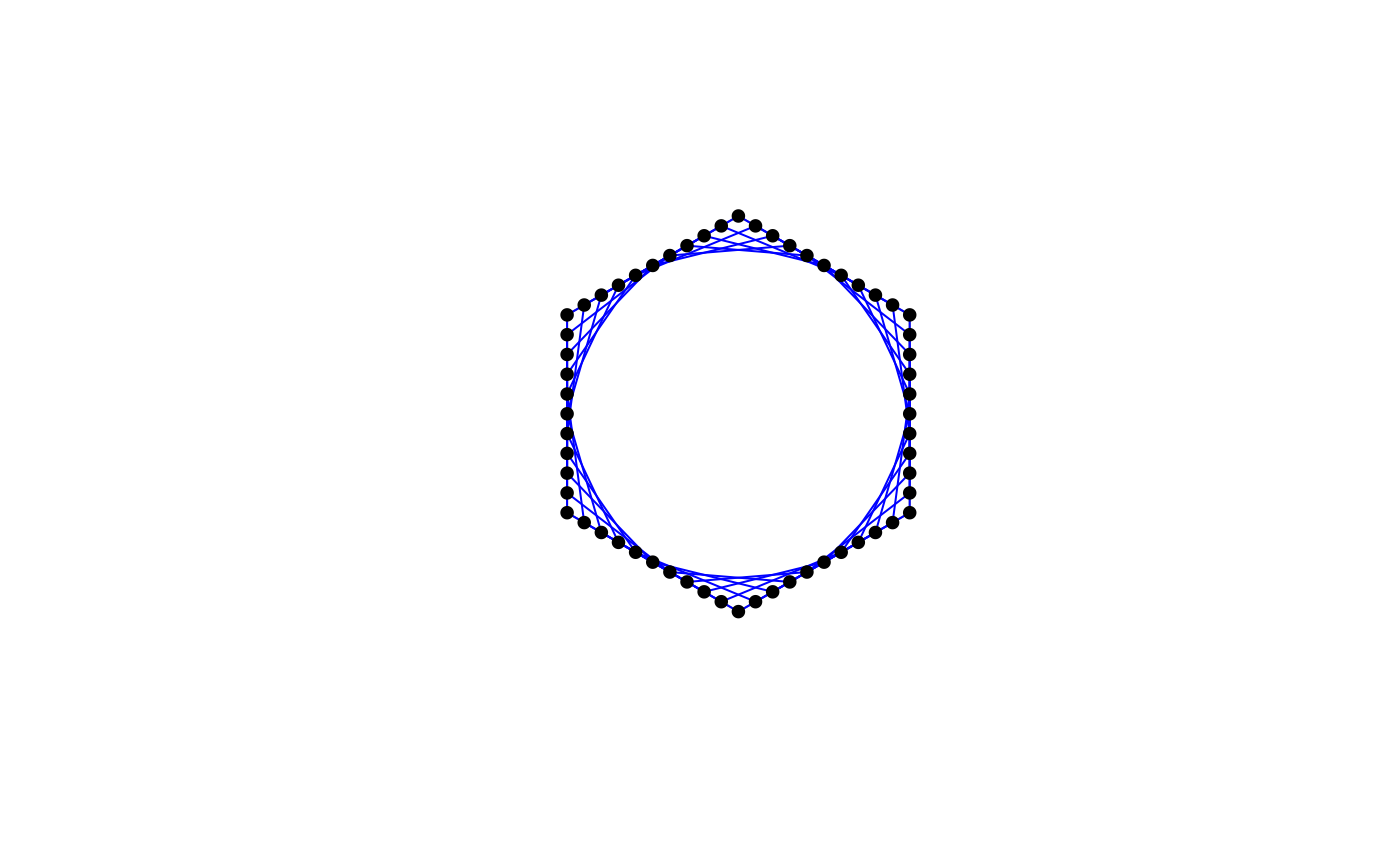

stpolygon(sides = 6)

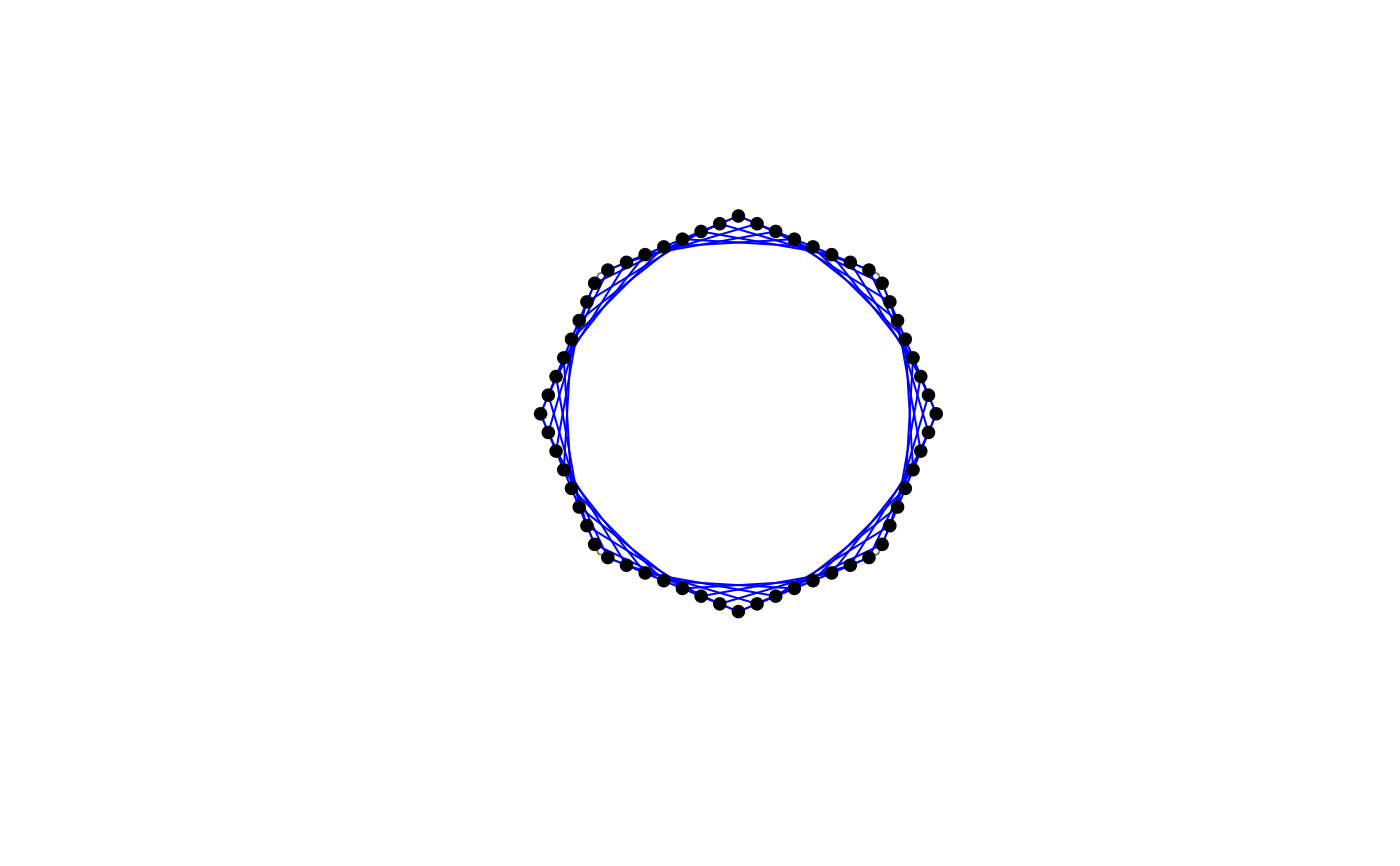

stpolygon(sides = 8)

stpolygon(n = 60, k = 7, sides = 5)

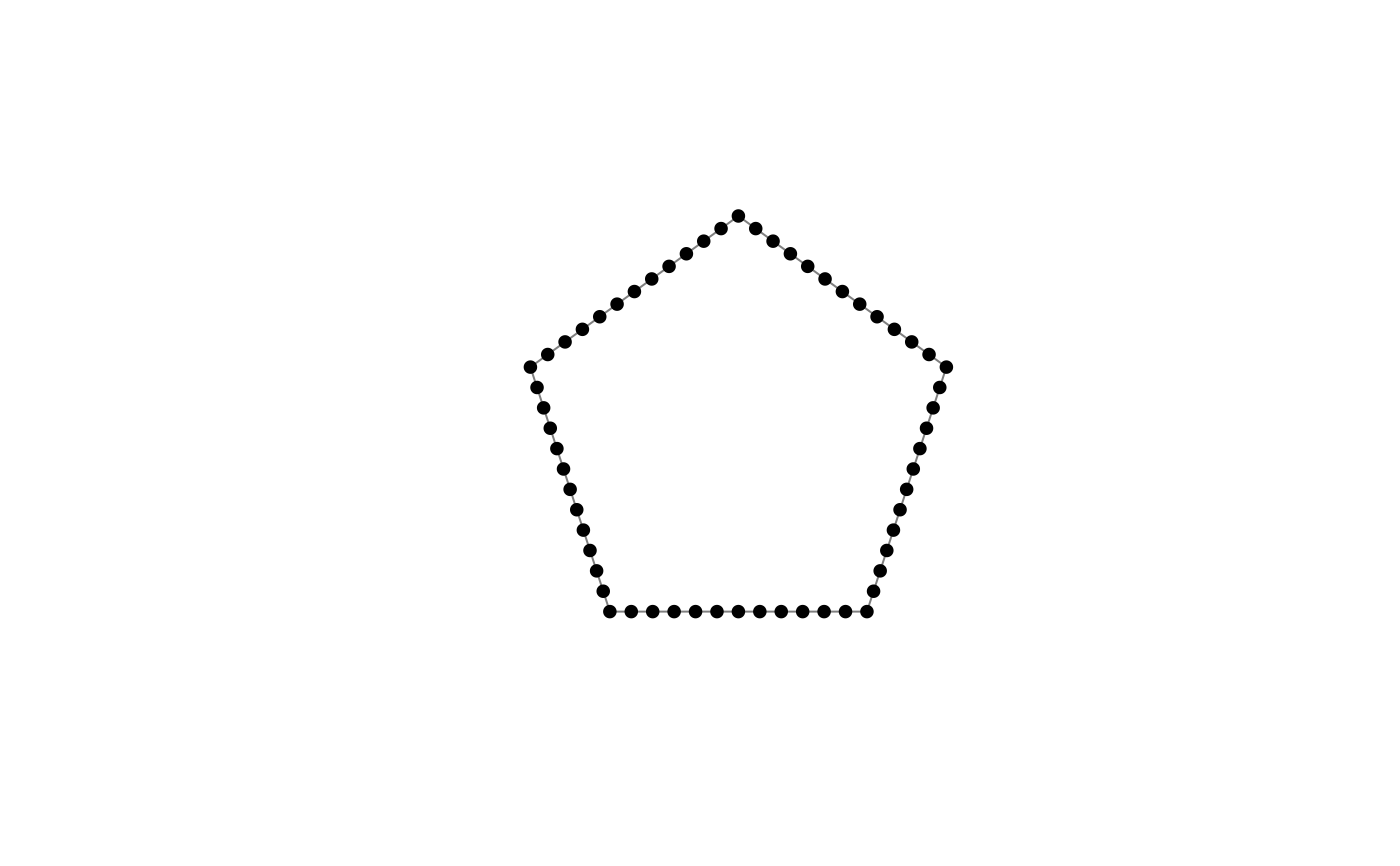

stpolygon(template = TRUE)
