Generate a lotus-like string art pattern

stlotus() generates a stylized lotus-like string art figure by combining one outer circular module, one central circular module, and several petal modules arranged around the center.

Usage

stlotus(
  n = 40,
  k = 11,
  col = "deeppink4",
  lwd = 0.8,
  plot = TRUE,
  show_points = FALSE,
  show_labels = FALSE,
  verbose = FALSE,
  petals = 5,
  outer_radius = 1,
  petal_radius = 0.34,
  petal_center_radius = 0.34,
  inner_radius = 0.18,
  rotate = 0,
  show_strings = TRUE,
  template = FALSE,
  point_col = "black",
  point_cex = 0.6,
  point_pch = 19,
  point_bg = "white",
  label_cex = 0.6,
  label_col = "black",
  border_col = "grey50",
  border_lwd = 1,
  bg = "white",
  main = NULL
)

Arguments

n: Integer. Number of pegs in each circular module. Must be at least 3.
k: Integer. Additive modular step used in each module. Must satisfy 1 <= k <= n - 1.
col: String color passed to graphics::segments(). It may have length 1 or petals + 2. If length is 1, the same color is used for all modules.
lwd: Positive number. Line width used to draw the strings.
plot: Logical. If TRUE, draws the figure.
show_points: Logical. If TRUE, draws the pegs.
show_labels: Logical. If TRUE, draws peg labels.
verbose: Logical. If TRUE, prints a short audit to the console.
petals: Integer. Number of petal modules around the center.
outer_radius: Positive number. Radius of the outer circular module.
petal_radius: Positive number. Radius of each petal module.
petal_center_radius: Positive number. Distance from the origin to each petal center.
inner_radius: Positive number. Radius of the central circular module.
rotate: Numeric. Rotation angle in radians applied to the whole figure.
show_strings: Logical. If TRUE, draws the string connections.
template: Logical. If TRUE, draws only the peg template, without string connections. This is equivalent to setting show_strings = FALSE and show_points = TRUE.
point_col: Peg color.
point_cex: Positive number. Peg size.
point_pch: Plotting symbol used for pegs.
point_bg: Peg background color when applicable.
label_cex: Positive number. Label size.
label_col: Label color.
border_col: Border color used for the module outlines.
border_lwd: Positive number. Border line width.
bg: Plot background color.
main: Optional plot title. If NULL, no title is displayed.

Value

Invisibly returns a list of class stringart_result with:

pegs: A data.frame with peg coordinates and metadata.
connections: A data.frame with columns connection_index, from, to, x_from, y_from, x_to, y_to, length, module, local_from, and local_to.
total_length: Total string length.
audit: A character vector with audit information.
meta: A list with construction metadata.

Details

The figure is built from petals + 2 circular modules:

one outer circular module;
petals petal modules;
one central circular module.

Each module contains n equally spaced pegs and uses the same additive modular rule:

to_local = ((from_local + k - 1) %% n) + 1.

The final figure is obtained by superimposing all module connections.

Examples

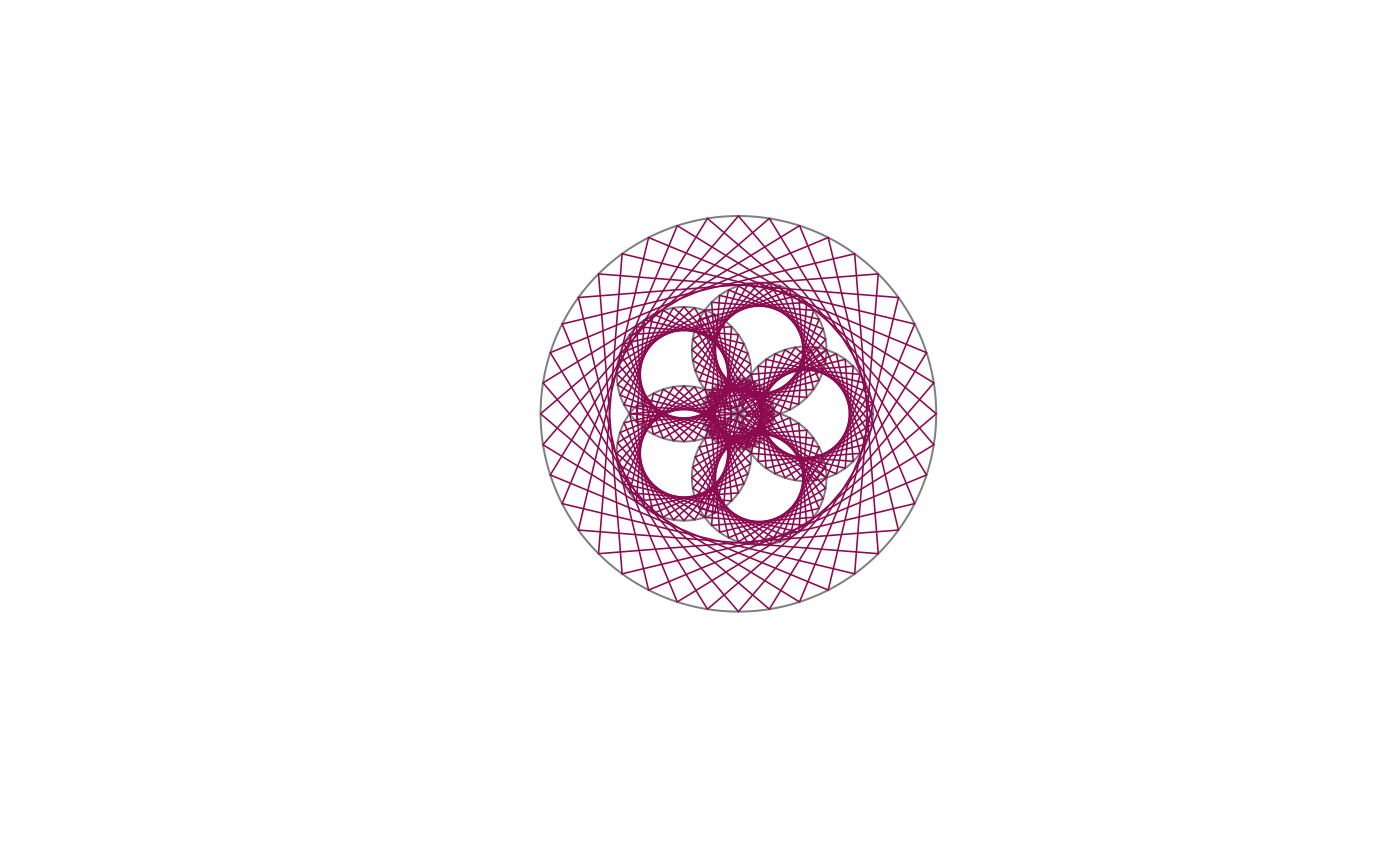

stlotus()


res <- stlotus(plot = FALSE)
head(res$pegs)
#>   index         x         y module layer local_index
#> 1     1 1.0000000 0.0000000  outer     0           1
#> 2     2 0.9876883 0.1564345  outer     0           2
#> 3     3 0.9510565 0.3090170  outer     0           3
#> 4     4 0.8910065 0.4539905  outer     0           4
#> 5     5 0.8090170 0.5877853  outer     0           5
#> 6     6 0.7071068 0.7071068  outer     0           6
head(res$connections)
#>   connection_index from to    x_from    y_from       x_to      y_to   length
#> 1                1    1 12 1.0000000 0.0000000 -0.1564345 0.9876883 1.520812
#> 2                2    2 13 0.9876883 0.1564345 -0.3090170 0.9510565 1.520812
#> 3                3    3 14 0.9510565 0.3090170 -0.4539905 0.8910065 1.520812
#> 4                4    4 15 0.8910065 0.4539905 -0.5877853 0.8090170 1.520812
#> 5                5    5 16 0.8090170 0.5877853 -0.7071068 0.7071068 1.520812
#> 6                6    6 17 0.7071068 0.7071068 -0.8090170 0.5877853 1.520812
#>   module local_from local_to
#> 1  outer          1       12
#> 2  outer          2       13
#> 3  outer          3       14
#> 4  outer          4       15
#> 5  outer          5       16
#> 6  outer          6       17
res$total_length
#> [1] 175.1975

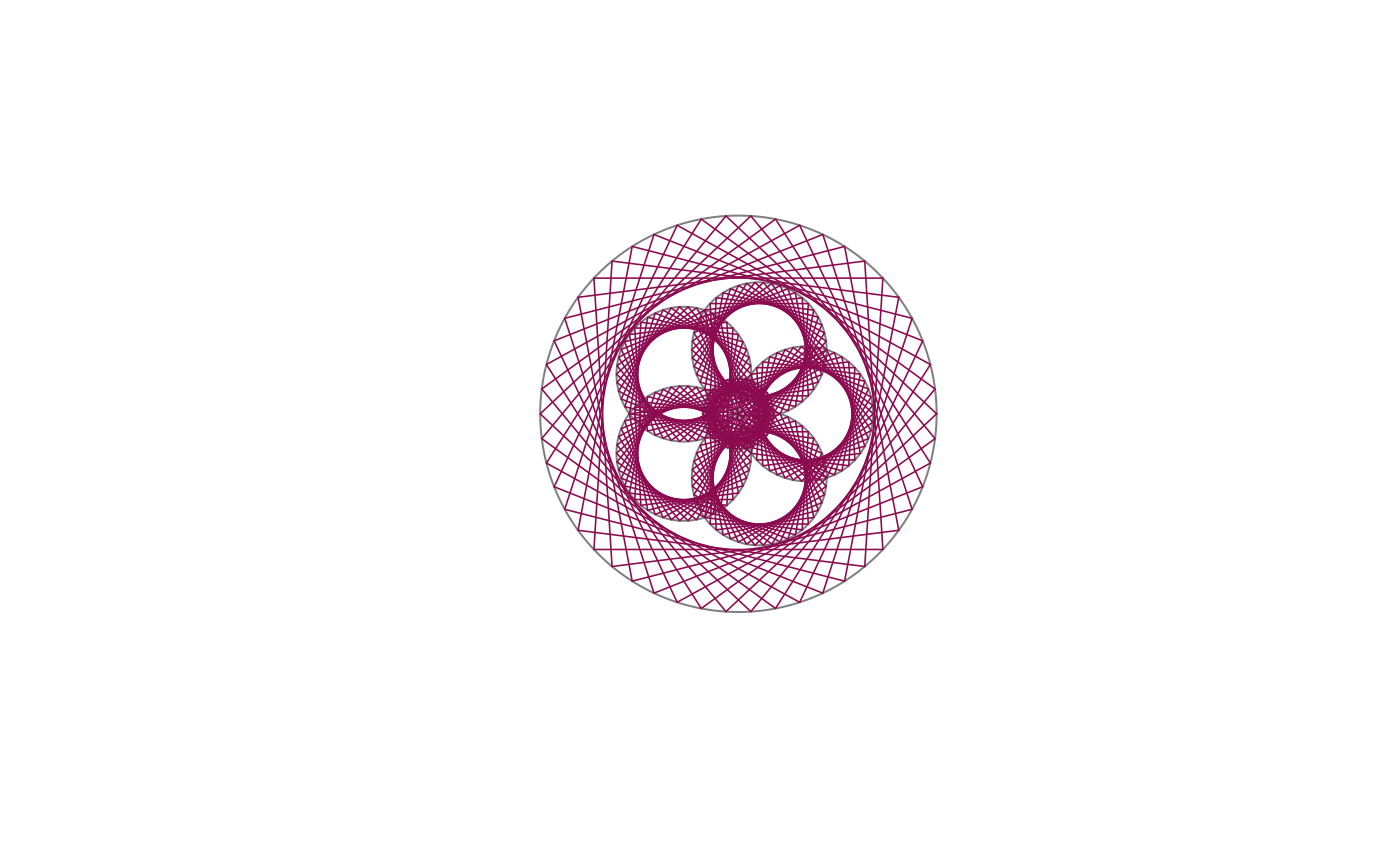

stlotus(n = 50, k = 13, col = "deeppink4", lwd = 0.8)

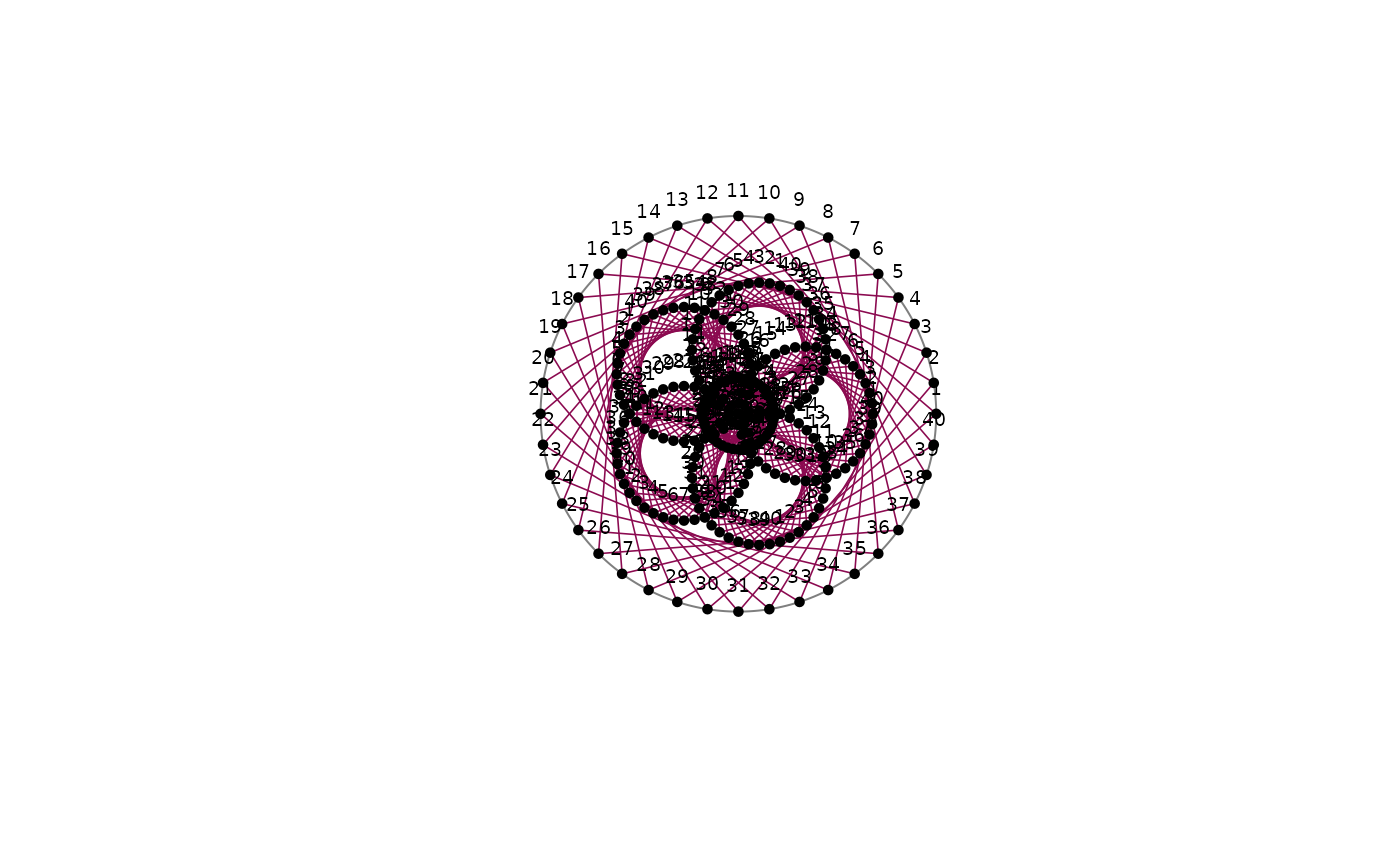

stlotus(show_points = TRUE, show_labels = TRUE)

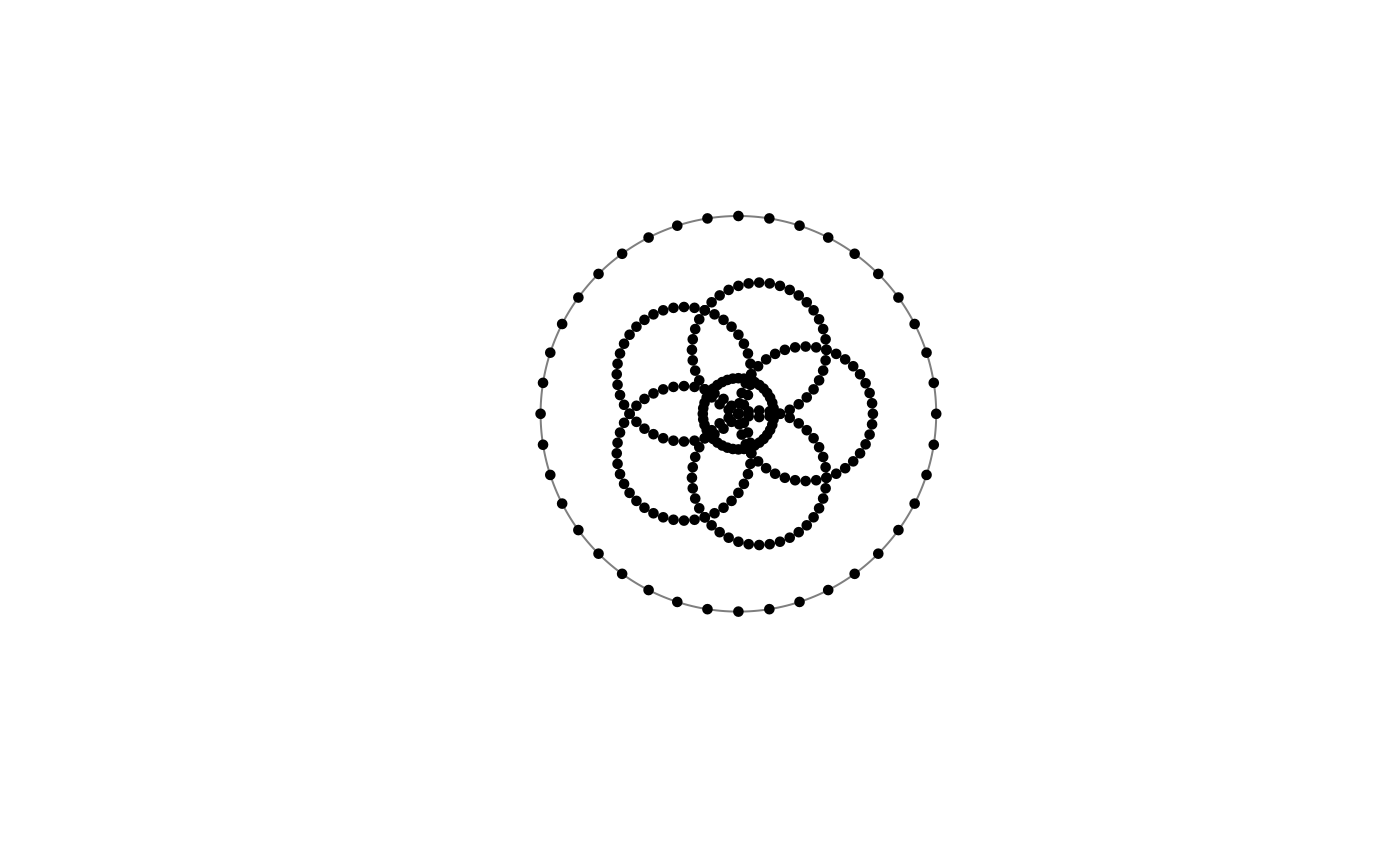

stlotus(template = TRUE)
