Generate a Lissajous string art pattern

stlissajous() generates a string art figure from pegs sampled on a Lissajous curve.

Usage

stlissajous(
  n = 300,
  k = 19,
  col = "purple",
  lwd = 0.7,
  plot = TRUE,
  show_points = FALSE,
  show_labels = FALSE,
  verbose = FALSE,
  a = 3,
  b = 2,
  phase = pi/2,
  amplitude_x = 1,
  amplitude_y = 1,
  rotate = 0,
  show_strings = TRUE,
  template = FALSE,
  draw_curve = TRUE,
  border_col = "grey50",
  border_lwd = 1,
  point_col = "black",
  point_cex = 0.5,
  point_pch = 19,
  point_bg = "white",
  label_cex = 0.6,
  label_col = "black",
  bg = "white",
  main = NULL
)

Arguments

n

Integer. Number of pegs sampled on the curve. Must be at least 3.

k

Integer. Additive modular step used in the connection rule. Must satisfy 1 <= k <= n - 1.

col

String color passed to graphics::segments().

lwd

Positive number. Line width used to draw the strings.

plot

Logical. If TRUE, draws the figure.

show_points

Logical. If TRUE, draws the pegs.

show_labels

Logical. If TRUE, draws peg labels.

verbose

Logical. If TRUE, prints a short audit to the console.

a

Positive integer. Frequency in the x-coordinate.

b

Positive integer. Frequency in the y-coordinate.

phase

Numeric. Phase shift in radians.

amplitude_x

Positive number. Horizontal amplitude.

amplitude_y

Positive number. Vertical amplitude.

rotate

Numeric. Rotation angle in radians.

show_strings

Logical. If TRUE, draws the string connections.

template

Logical. If TRUE, draws only the peg template.

draw_curve

Logical. If TRUE, draws the underlying Lissajous curve.

border_col

Curve color.

border_lwd

Positive number. Curve line width.

point_col

Peg color.

point_cex

Positive number. Peg size.

point_pch

Plotting symbol used for pegs.

point_bg

Peg background color when applicable.

label_cex

Positive number. Label size.

label_col

Label color.

bg

Plot background color.

main

Optional plot title.

Value

Invisibly returns a list of class stringart_result.

Details

The curve is given by

x(t) = amplitude_x * sin(a * t + phase) and y(t) = amplitude_y * sin(b * t).

Examples

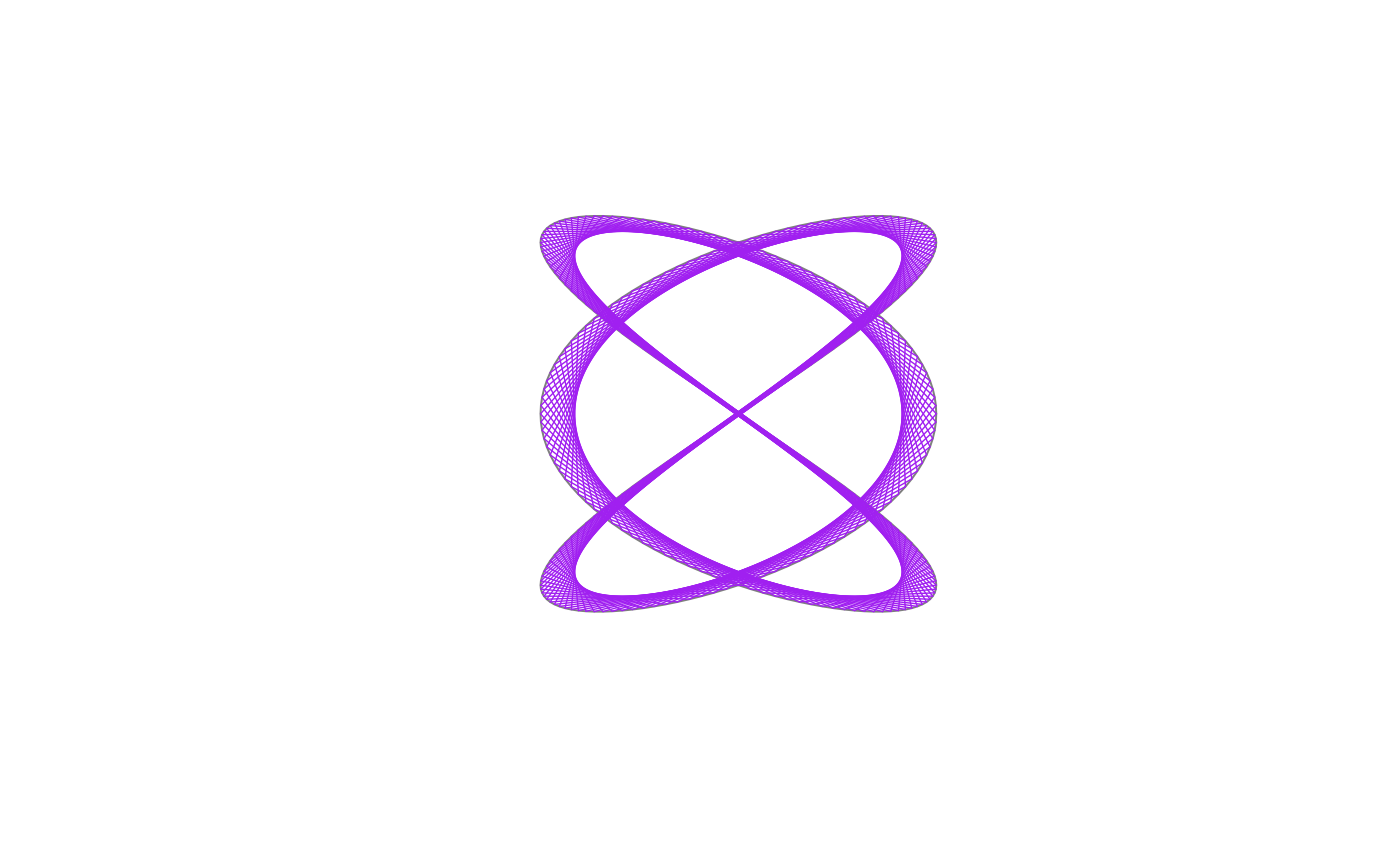

stlissajous()

stlissajous(a = 3, b = 2)

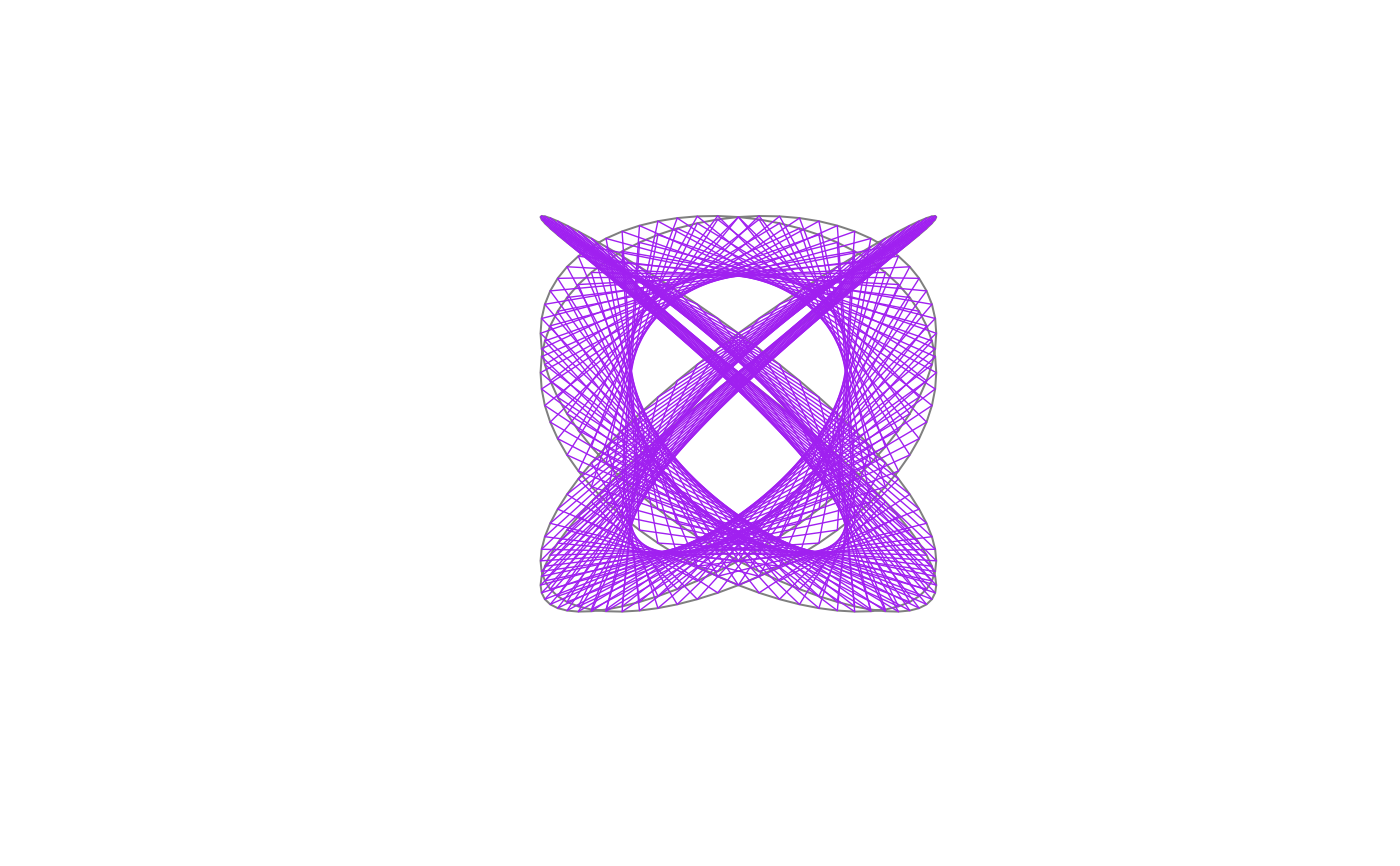

stlissajous(a = 5, b = 4, phase = pi / 3)

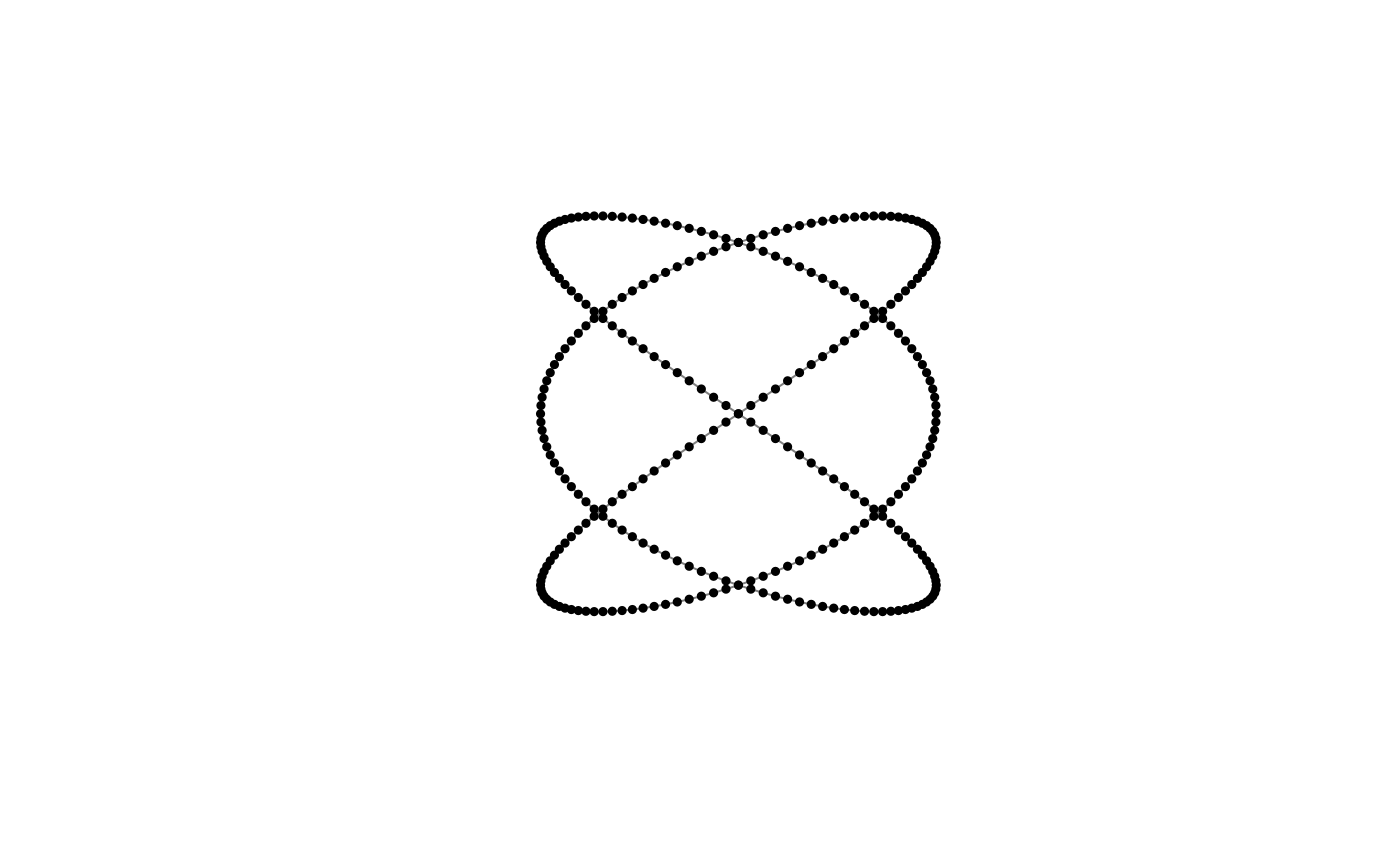

stlissajous(template = TRUE)
