Generate an elliptical string art pattern

stellipse() generates a string art pattern by placing equally spaced pegs along an ellipse and connecting each peg to another peg according to an additive modular rule.

Usage

stellipse(
  n = 30,
  k = 5,
  col = "blue",
  lwd = 1,
  plot = TRUE,
  show_points = TRUE,
  show_labels = FALSE,
  verbose = FALSE,
  a = 2,
  b = 1,
  rotate = 0,
  show_strings = TRUE,
  template = FALSE,
  point_col = "black",
  point_cex = 0.8,
  point_pch = 19,
  point_bg = "white",
  label_cex = 0.7,
  label_col = "black",
  border_col = "grey50",
  border_lwd = 1,
  bg = "white",
  main = NULL
)

Arguments

n: Integer. Number of pegs placed on the ellipse. Must be at least 3.
k: Integer. Step used in the modular connection rule. Must satisfy 1 <= k <= n - 1.
col: String color passed to graphics::segments().
lwd: Positive number. Line width used to draw the strings.
plot: Logical. If TRUE, draws the figure.
show_points: Logical. If TRUE, draws the pegs.
show_labels: Logical. If TRUE, draws peg labels.
verbose: Logical. If TRUE, prints a short audit to the console.
a: Positive number. Semi-major horizontal axis of the ellipse.
b: Positive number. Semi-minor vertical axis of the ellipse.
rotate: Numeric. Rotation angle in radians applied to the whole figure.
show_strings: Logical. If TRUE, draws the string connections.
template: Logical. If TRUE, draws only the peg template, without string connections. This is equivalent to setting show_strings = FALSE and show_points = TRUE.
point_col: Peg color.
point_cex: Positive number. Peg size.
point_pch: Plotting symbol used for pegs.
point_bg: Peg background color when applicable.
label_cex: Positive number. Label size.
label_col: Label color.
border_col: Ellipse border color.
border_lwd: Positive number. Ellipse border line width.
bg: Plot background color.
main: Optional plot title. If NULL, no title is displayed.

Value

Invisibly returns a list of class stringart_result with:

pegs: A data.frame with columns index, x, and y.
connections: A data.frame with columns connection_index, from, to, x_from, y_from, x_to, y_to, and length.
total_length: Total string length.
audit: A character vector with audit information.
meta: A list with construction metadata.

Details

The pegs are placed along the parametric ellipse x = a * cos(theta) and y = b * sin(theta), centered at the origin. Pegs are indexed from 1 to n in counterclockwise order, starting at (a, 0), after applying the optional rotation angle rotate.

The additive modular connection rule is:

to = ((from + k - 1) %% n) + 1.

When gcd(n, k) = 1, this rule generates a single cycle passing through all pegs. When gcd(n, k) > 1, the figure decomposes into independent cycles.

Examples

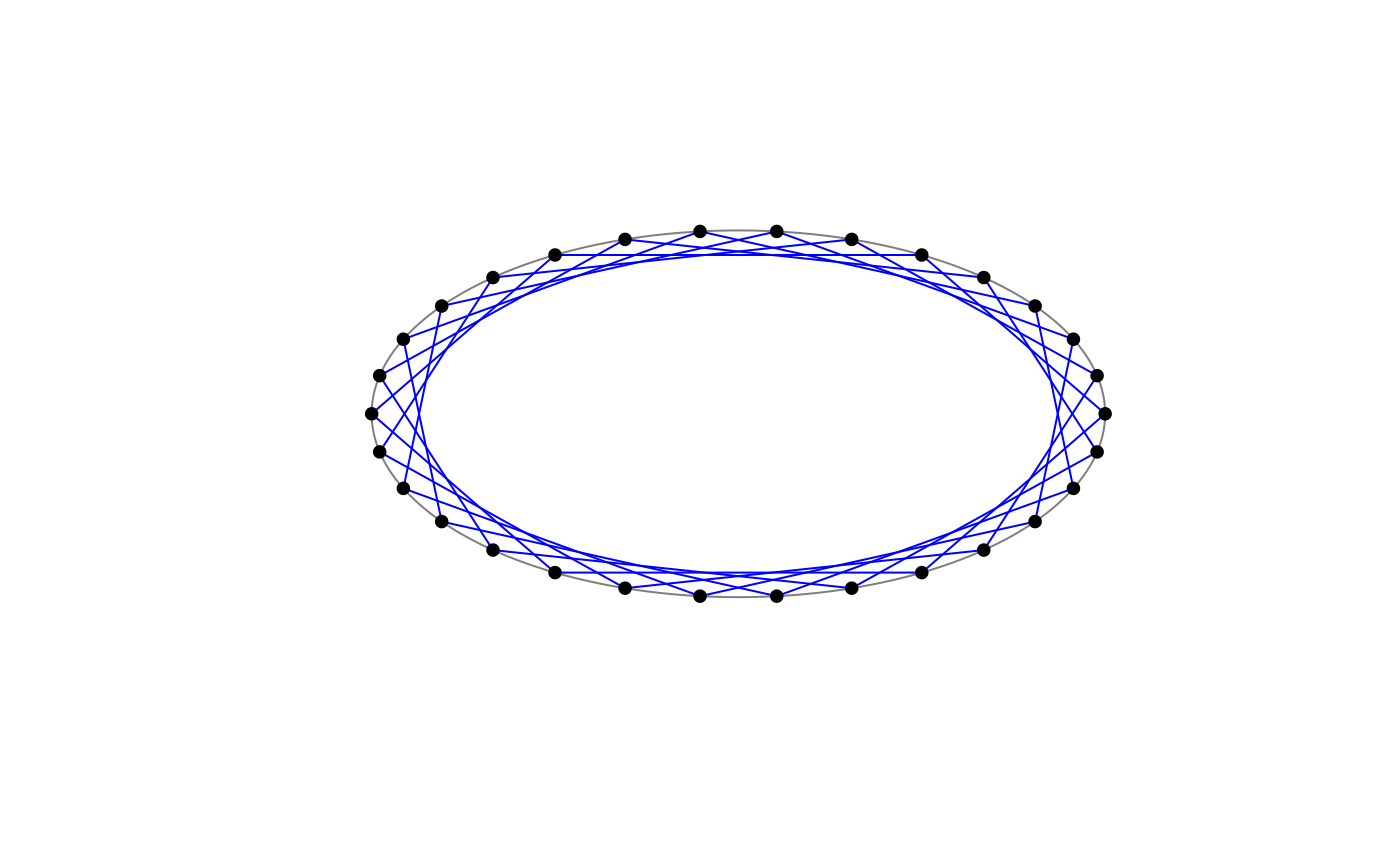

stellipse()


res <- stellipse(plot = FALSE)
head(res$pegs)
#>   index        x         y
#> 1     1 2.000000 0.0000000
#> 2     2 1.956295 0.2079117
#> 3     3 1.827091 0.4067366
#> 4     4 1.618034 0.5877853
#> 5     5 1.338261 0.7431448
#> 6     6 1.000000 0.8660254
head(res$connections)
#>   connection_index from to   x_from    y_from       x_to      y_to   length
#> 1                1    1  6 2.000000 0.0000000  1.0000000 0.8660254 1.322876
#> 2                2    2  7 1.956295 0.2079117  0.6180340 0.9510565 1.530754
#> 3                3    3  8 1.827091 0.4067366  0.2090569 0.9945219 1.721489
#> 4                4    4  9 1.618034 0.5877853 -0.2090569 0.9945219 1.871816
#> 5                5    5 10 1.338261 0.7431448 -0.6180340 0.9510565 1.967312
#> 6                6    6 11 1.000000 0.8660254 -1.0000000 0.8660254 2.000000
res$total_length
#> [1] 46.25893

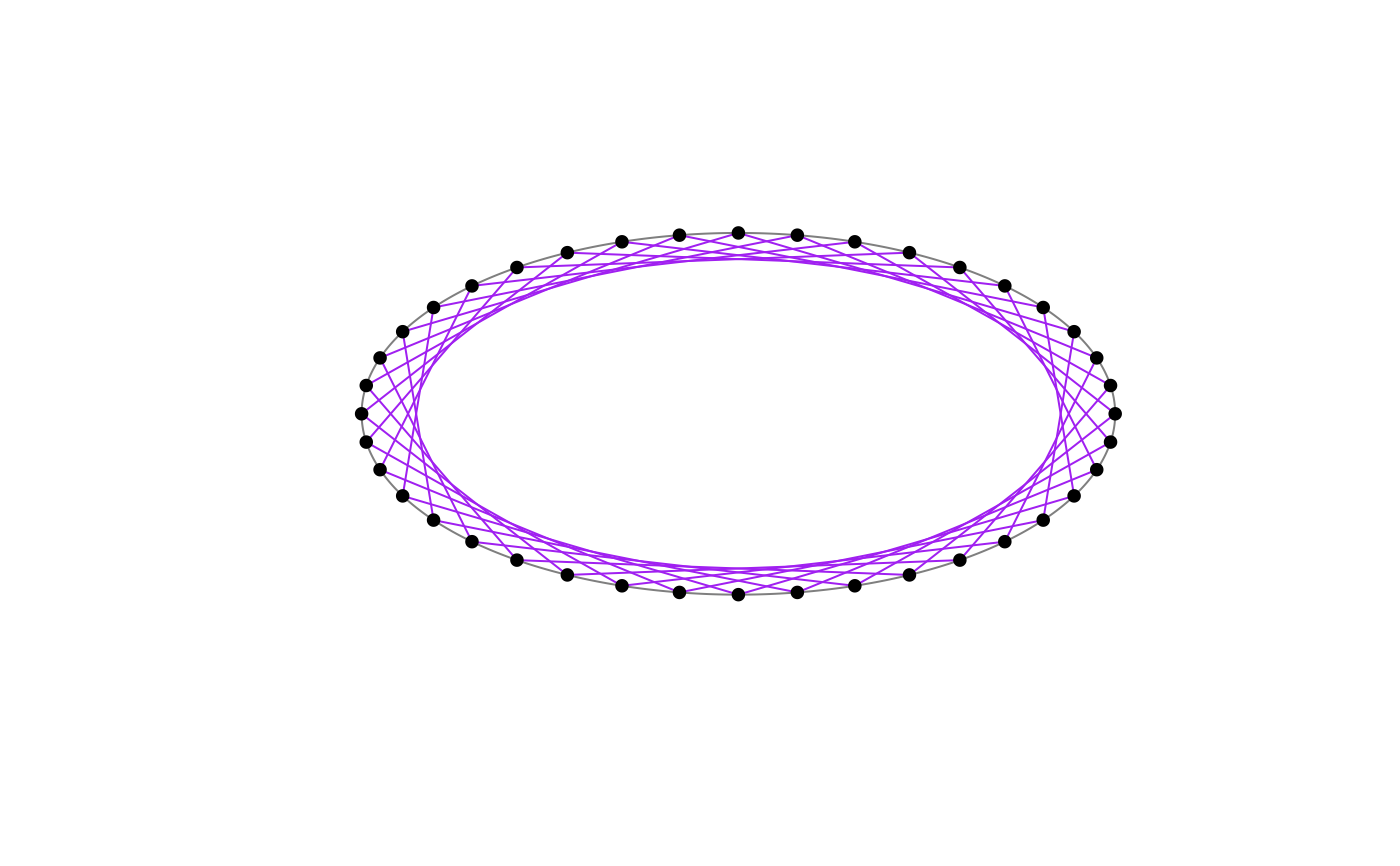

stellipse(n = 40, k = 7, a = 2.5, b = 1.2, col = "purple", lwd = 1)

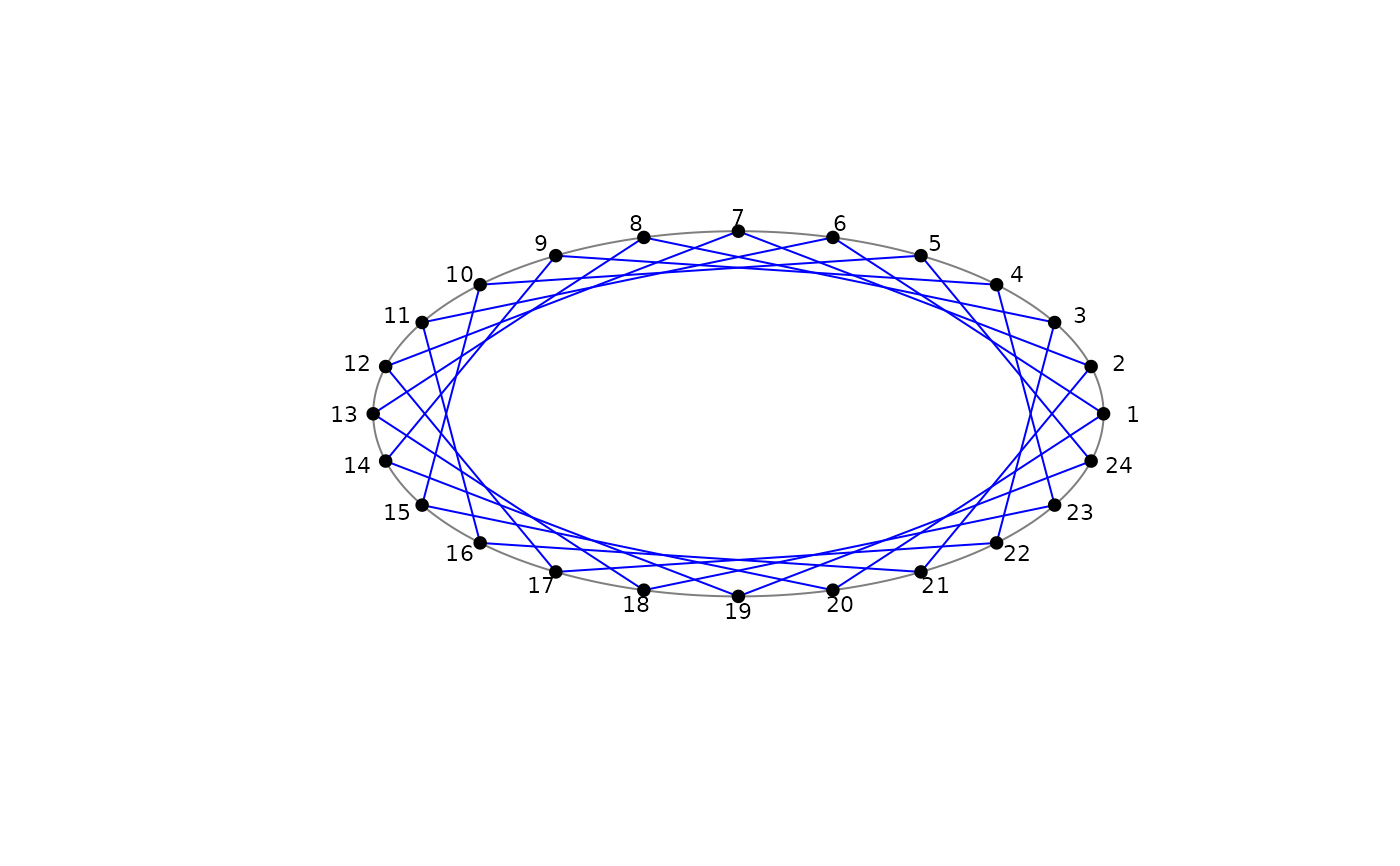

stellipse(n = 24, k = 5, show_points = TRUE, show_labels = TRUE)

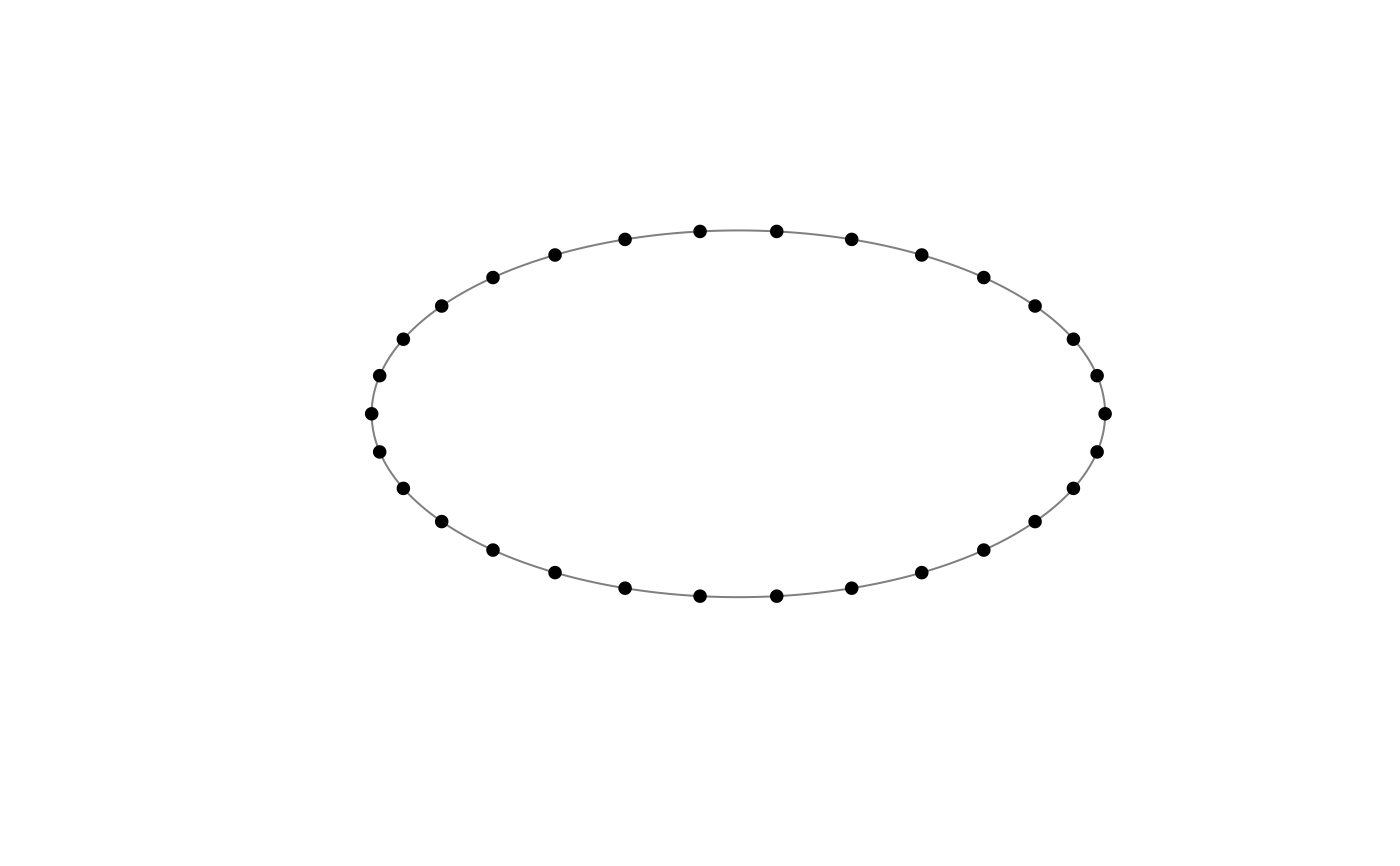

stellipse(template = TRUE)
