Generate a circular string art pattern with a cardioid effect

stcardioid() generates a circular string art pattern by placing equally spaced pegs on a circle and connecting each peg to another peg according to a multiplicative modular rule.

Usage

stcardioid(
  n = 120,
  k = 2,
  col = "antiquewhite",
  lwd = 0.8,
  plot = TRUE,
  show_points = FALSE,
  show_labels = FALSE,
  verbose = FALSE,
  r = 1,
  rotate = 0,
  show_strings = TRUE,
  template = FALSE,
  point_col = "darkorange2",
  point_cex = 0.8,
  point_pch = 21,
  point_bg = "white",
  label_cex = 0.7,
  label_col = "black",
  border_col = "goldenrod3",
  border_lwd = 1.2,
  bg = "white",
  main = NULL
)

Arguments

n: Integer. Number of pegs placed on the circle. Must be at least 3.
k: Integer. Multiplication factor used in the modular connection rule. Must satisfy 1 <= k <= n - 1.
col: String color passed to graphics::segments().
lwd: Positive number. Line width used to draw the strings.
plot: Logical. If TRUE, draws the figure.
show_points: Logical. If TRUE, draws the pegs.
show_labels: Logical. If TRUE, draws peg labels.
verbose: Logical. If TRUE, prints a short audit to the console.
r: Positive number. Radius of the circle.
rotate: Numeric. Rotation angle in radians applied to the whole figure.
show_strings: Logical. If TRUE, draws the string connections.
template: Logical. If TRUE, draws only the peg template, without string connections. This is equivalent to setting show_strings = FALSE and show_points = TRUE.
point_col: Peg border color.
point_cex: Positive number. Peg size.
point_pch: Plotting symbol used for pegs.
point_bg: Peg background color when applicable.
label_cex: Positive number. Label size.
label_col: Label color.
border_col: Circle border color.
border_lwd: Positive number. Circle border line width.
bg: Plot background color.
main: Optional plot title. If NULL, no title is displayed.

Value

Invisibly returns a list of class stringart_result with:

pegs: A data.frame with columns index, x, and y.
connections: A data.frame with columns connection_index, from, to, x_from, y_from, x_to, y_to, and length.
total_length: Total string length.
audit: A character vector with audit information.
meta: A list with construction metadata.

Details

The pegs are placed on a circle of radius r, centered at the origin. Pegs are indexed from 1 to n in counterclockwise order, starting at (r, 0), after applying the optional rotation angle rotate.

The multiplicative modular connection rule is:

to = ((k * (from - 1)) %% n) + 1.

For k = 2, this rule produces the classical circular multiplication-table pattern commonly associated with a cardioid-like envelope.

Examples

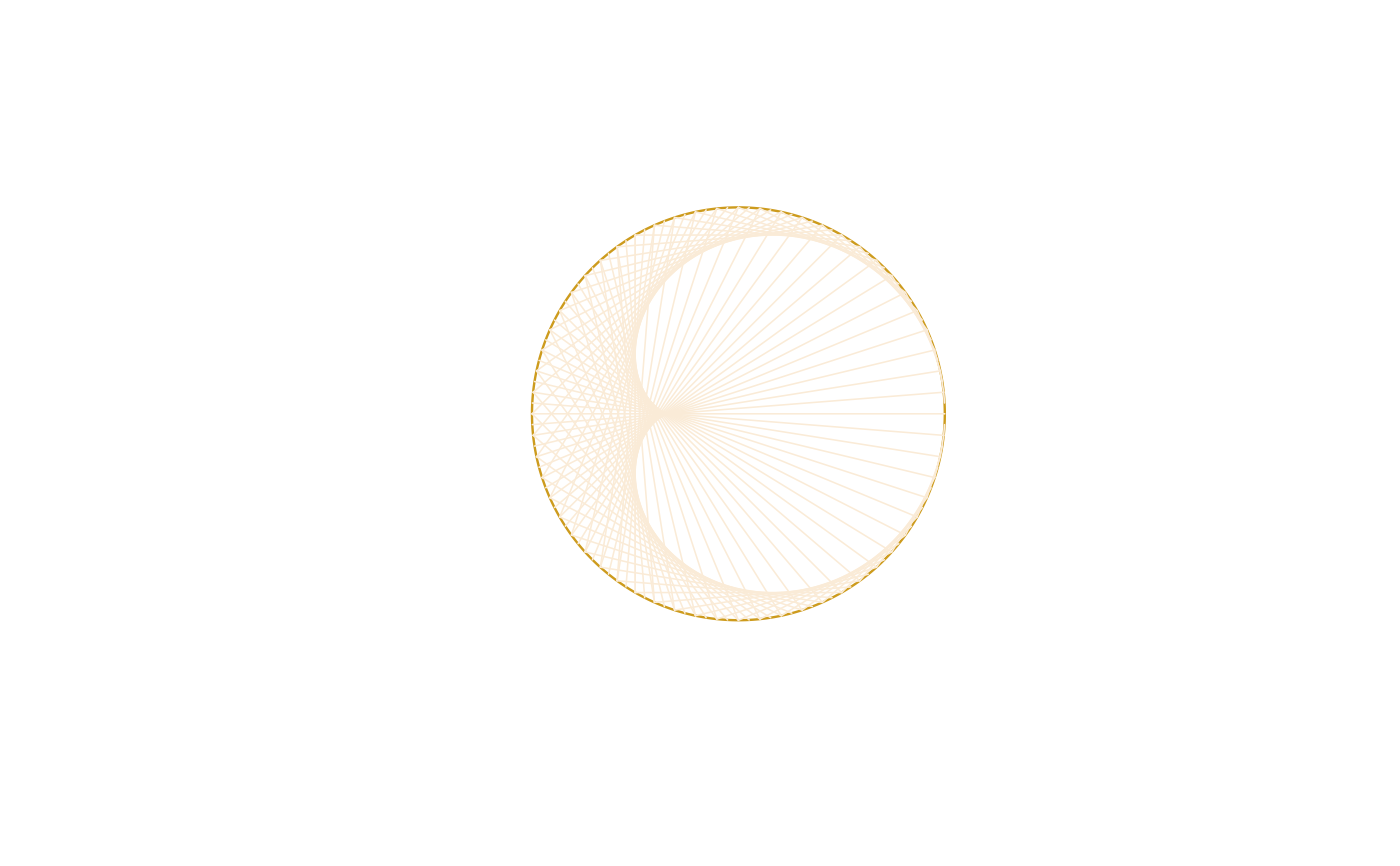

stcardioid()


res <- stcardioid(plot = FALSE)
head(res$pegs)
#>   index         x          y
#> 1     1 1.0000000 0.00000000
#> 2     2 0.9986295 0.05233596
#> 3     3 0.9945219 0.10452846
#> 4     4 0.9876883 0.15643447
#> 5     5 0.9781476 0.20791169
#> 6     6 0.9659258 0.25881905
head(res$connections)
#>   connection_index from to    x_from     y_from      x_to      y_to    length
#> 1                1    1  1 1.0000000 0.00000000 1.0000000 0.0000000 0.0000000
#> 2                2    2  3 0.9986295 0.05233596 0.9945219 0.1045285 0.0523539
#> 3                3    3  5 0.9945219 0.10452846 0.9781476 0.2079117 0.1046719
#> 4                4    4  7 0.9876883 0.15643447 0.9510565 0.3090170 0.1569182
#> 5                5    5  9 0.9781476 0.20791169 0.9135455 0.4067366 0.2090569
#> 6                6    6 11 0.9659258 0.25881905 0.8660254 0.5000000 0.2610524
res$total_length
#> [1] 152.78

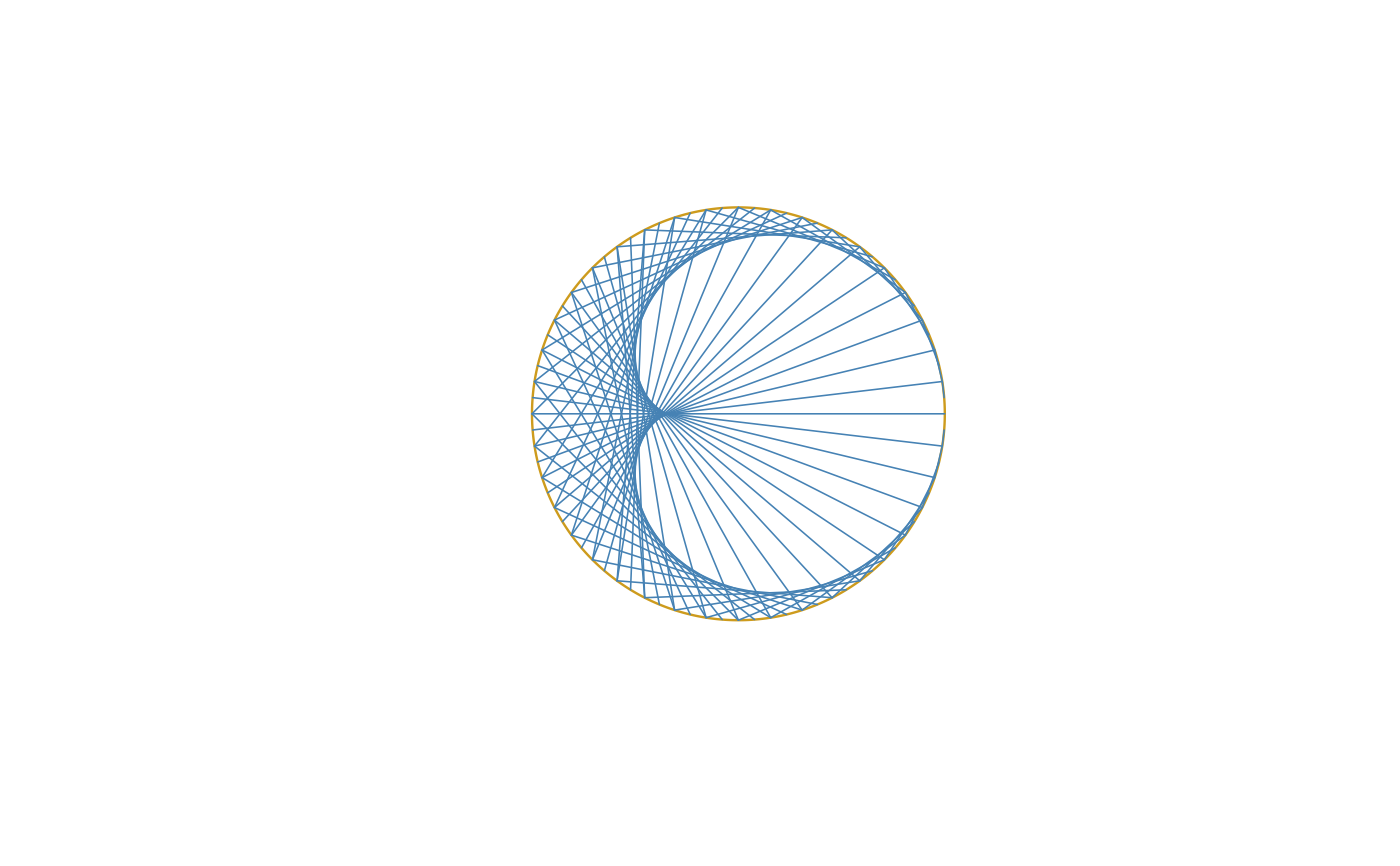

stcardioid(n = 80, k = 2, col = "steelblue", lwd = 0.8)

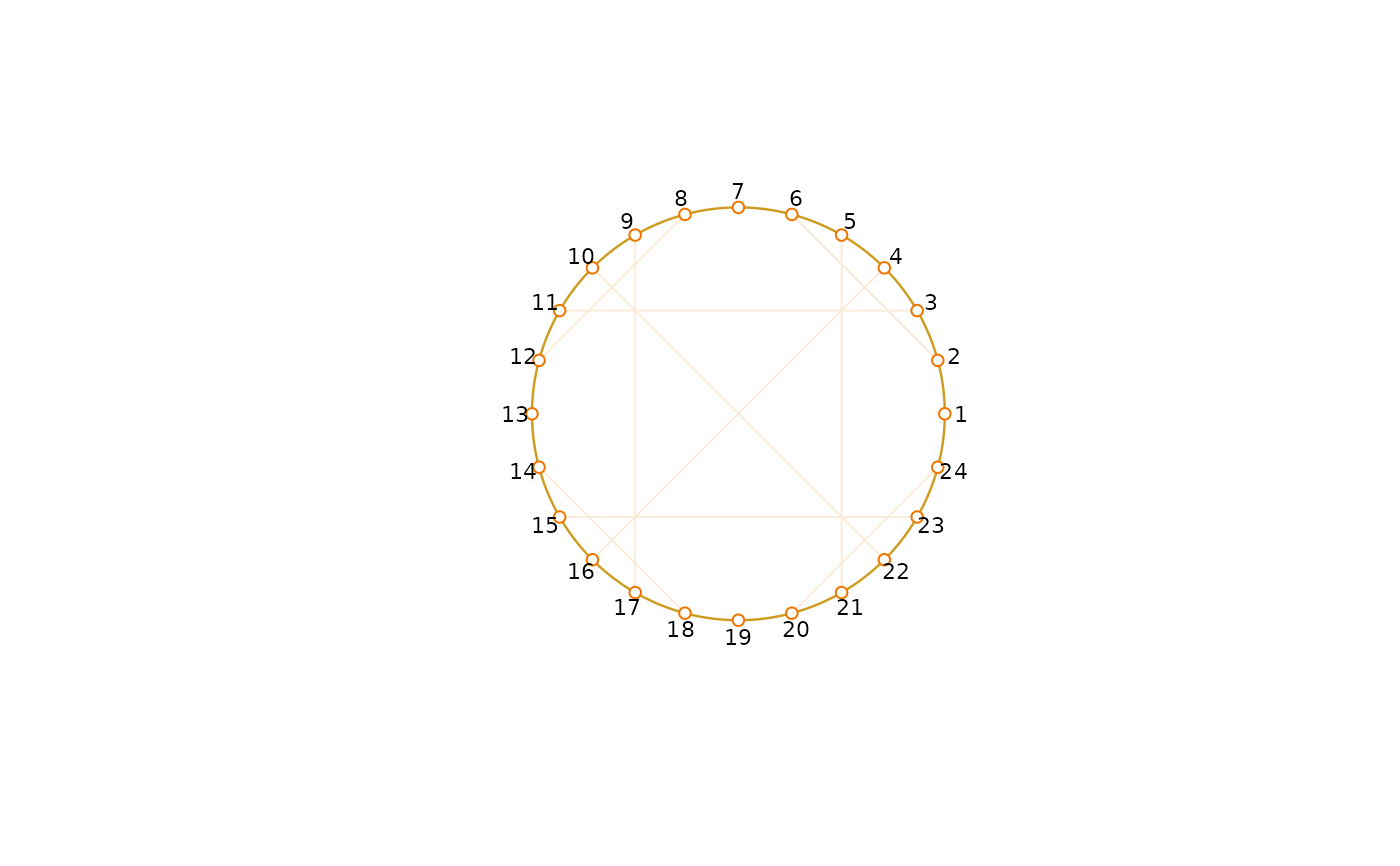

stcardioid(n = 24, k = 5, show_points = TRUE, show_labels = TRUE)

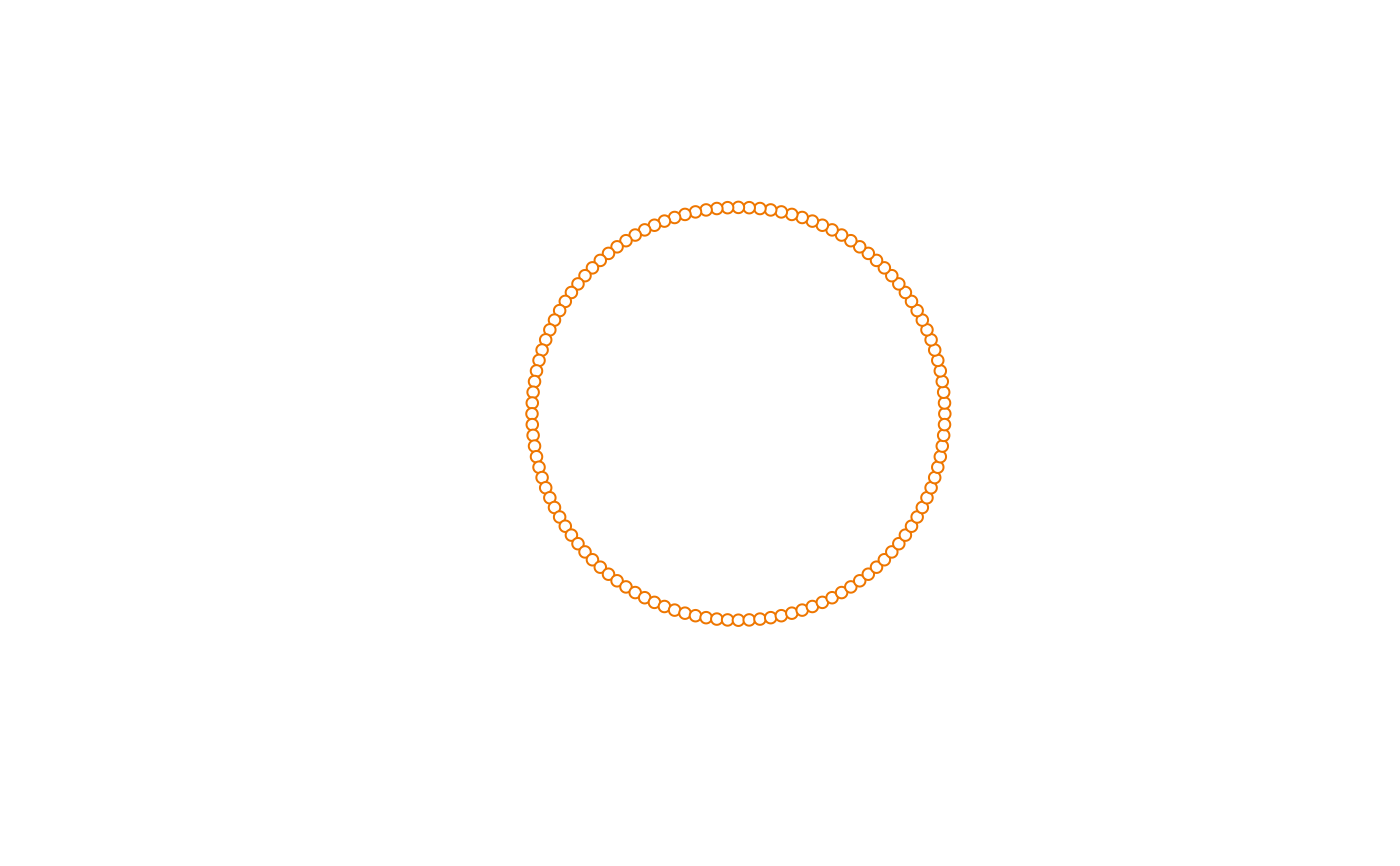

stcardioid(template = TRUE)
